PAM-Mysql Authentication in Safesquid

[SiddharthDubey55]

Scenario : - MYSQL PAM Authentication in SAFESQUID.

PROBLEM : -

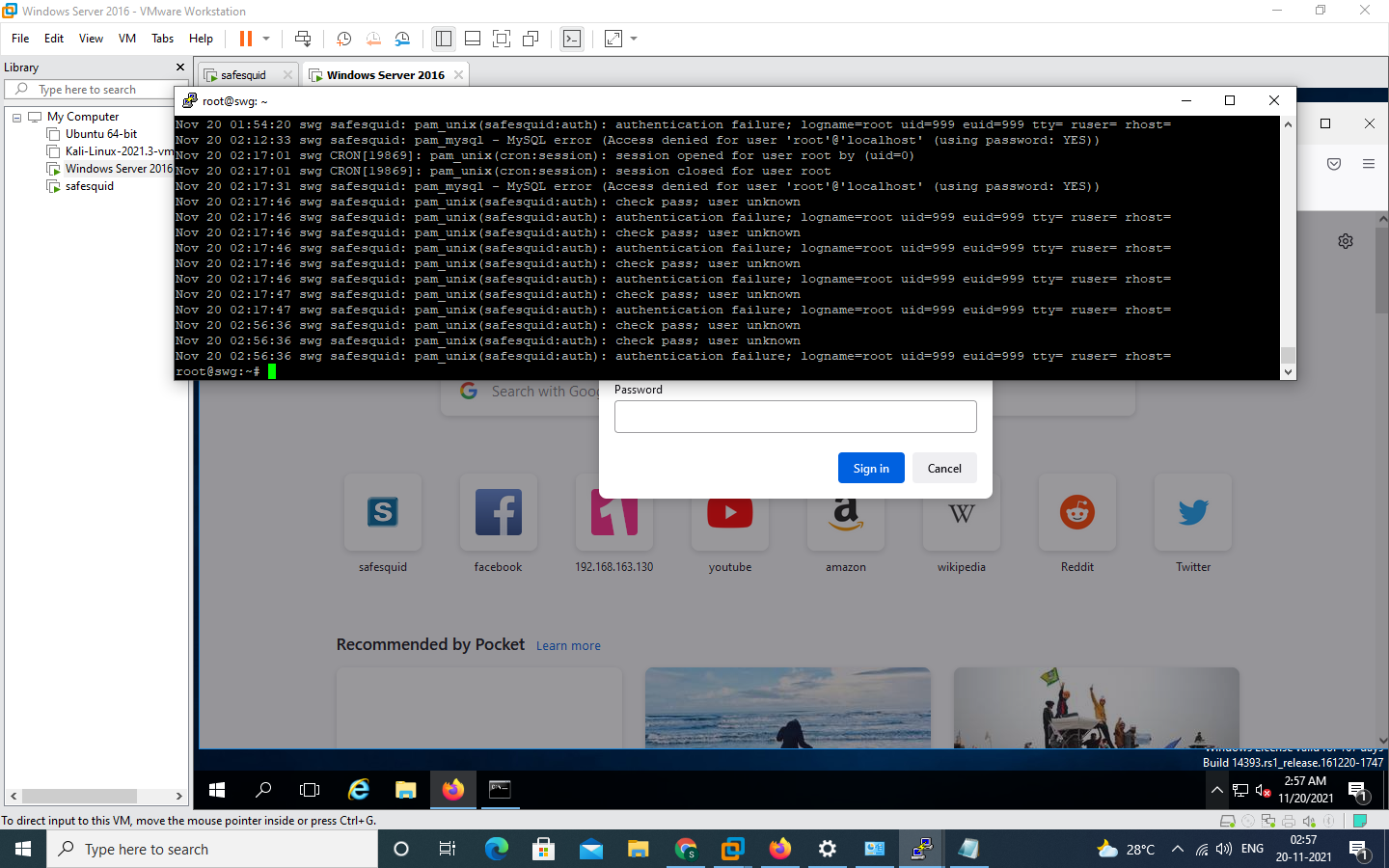

(/VAR/AUTH.LOGS)
Nov 20 02:17:47 swg safesquid: pam_unix(safesquid:auth): check pass; user unknown
Nov 20 02:17:47 swg safesquid: pam_unix(safesquid:auth): authentication failure; logname=root uid=999 euid=999 tty= ruser= rhost=

Screenshot (80).png (258.49 KiB) Viewed 3245 times

STEPS I HAVE FOLLOWED :

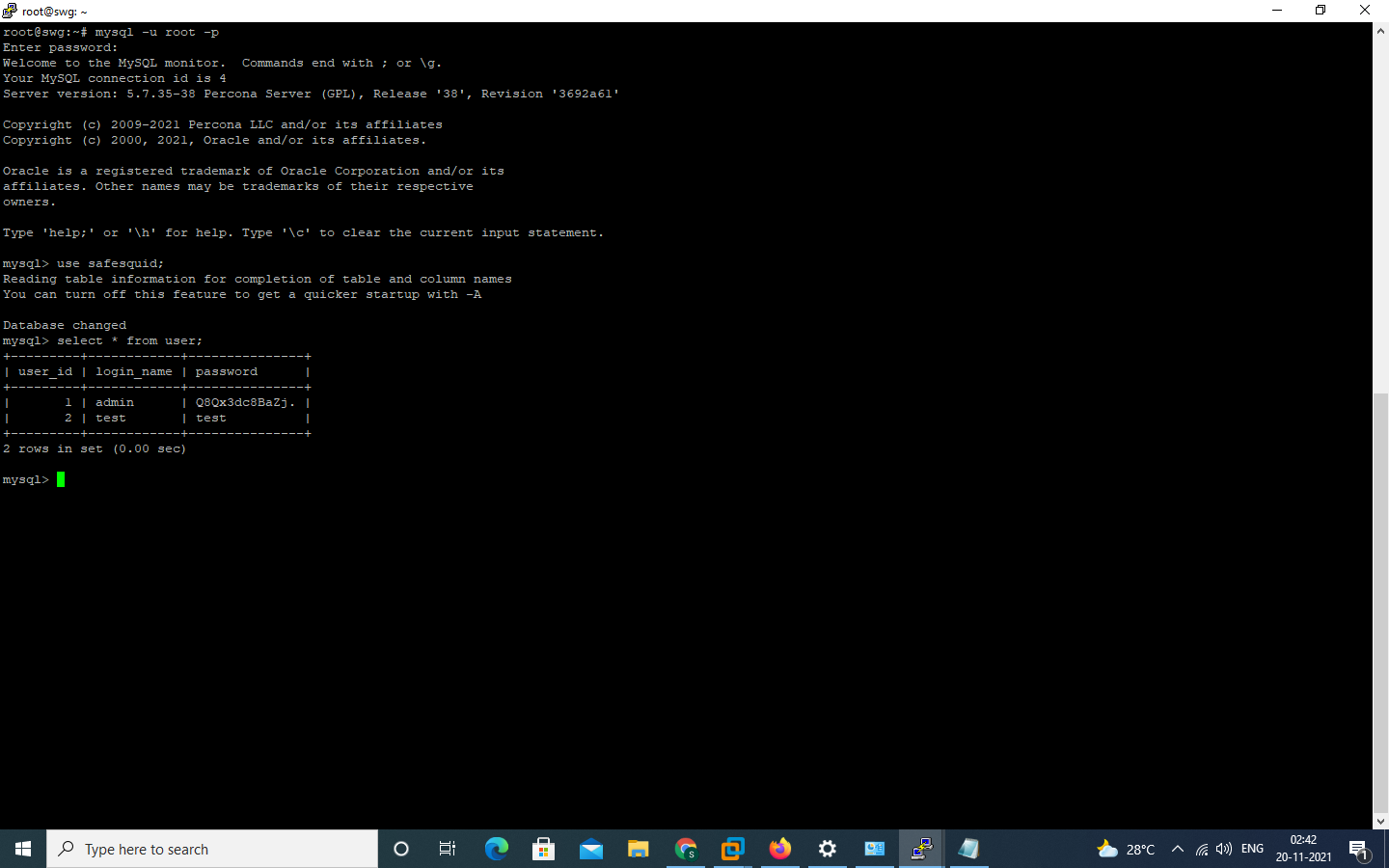

1. CREATED ONE TEST USER IN MYSQL DATABASE SAFESQUID WITH COLUMN LOGIN_NAME AND PASSWORD IN USER TABLE ;

Screenshot (78).png (88.78 KiB) Viewed 3245 times

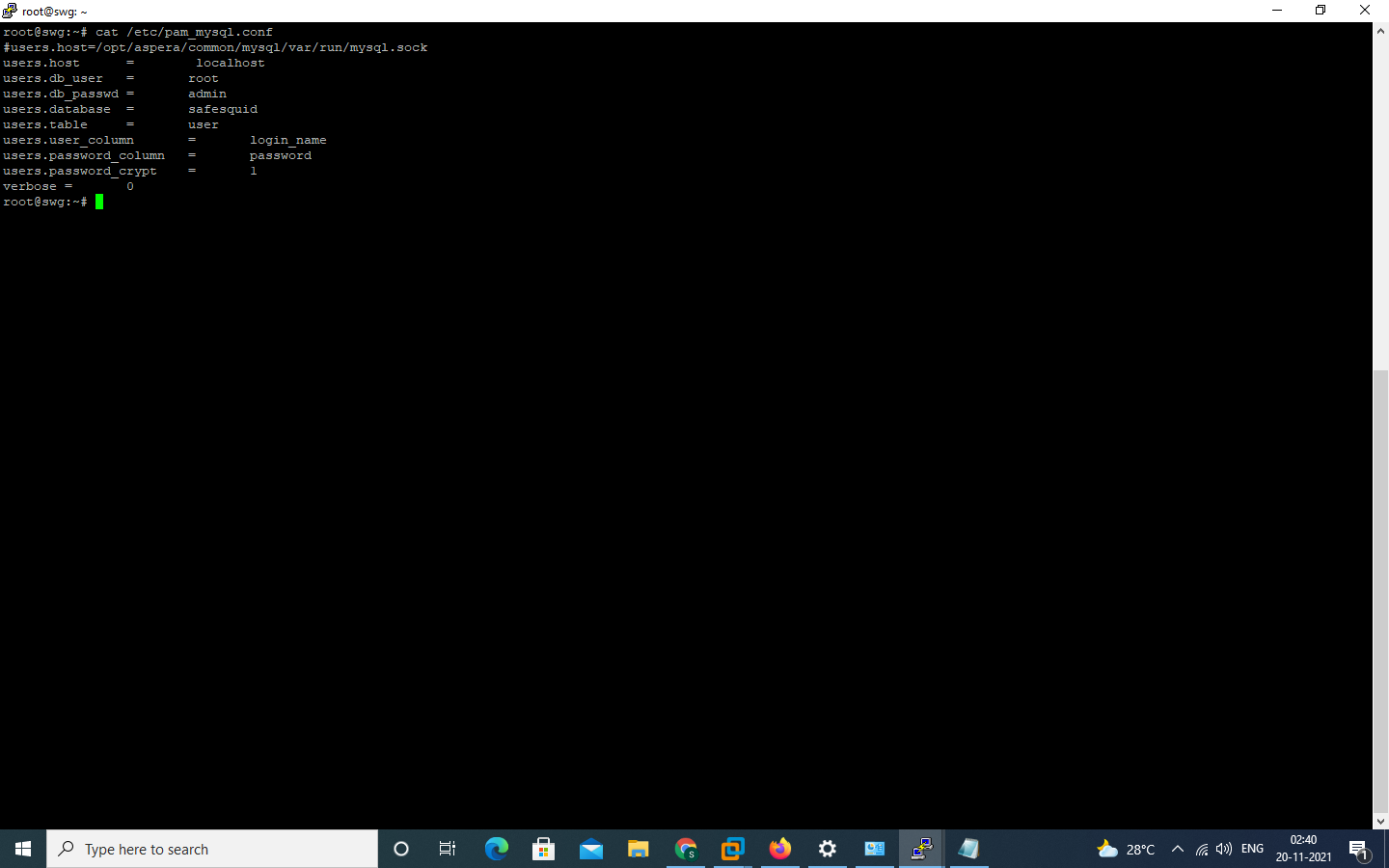

2. MADE CONFIG FILE IN /etc/pam_mysql.conf file

Screenshot (77).png (70 KiB) Viewed 3245 times

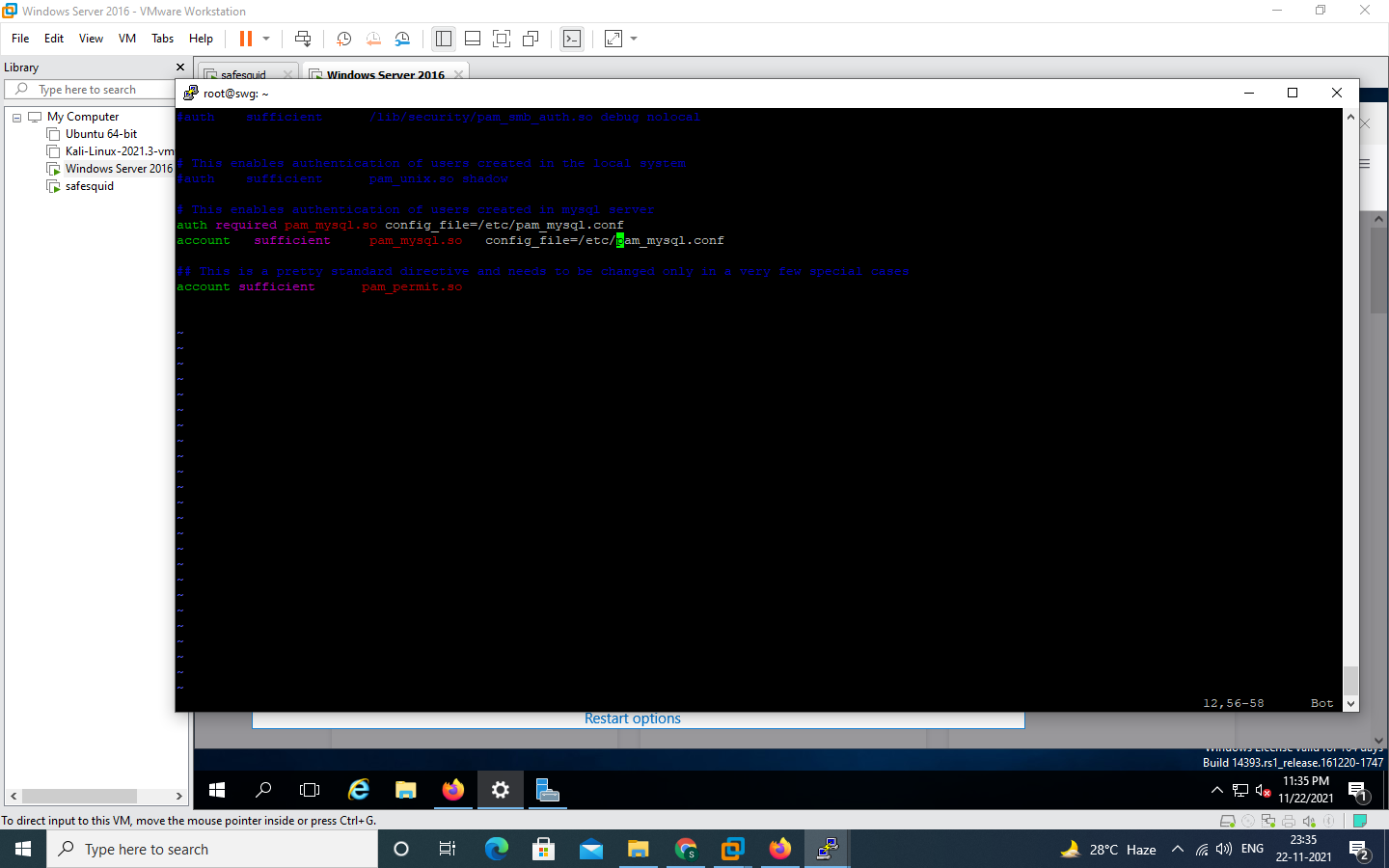

3. Added pam_mysql.so in /etc/pam.d/safesquid file

Screenshot (81).png (121.85 KiB) Viewed 3228 times

I have also changed the owner of pam_mysql.conf owner ssquid;

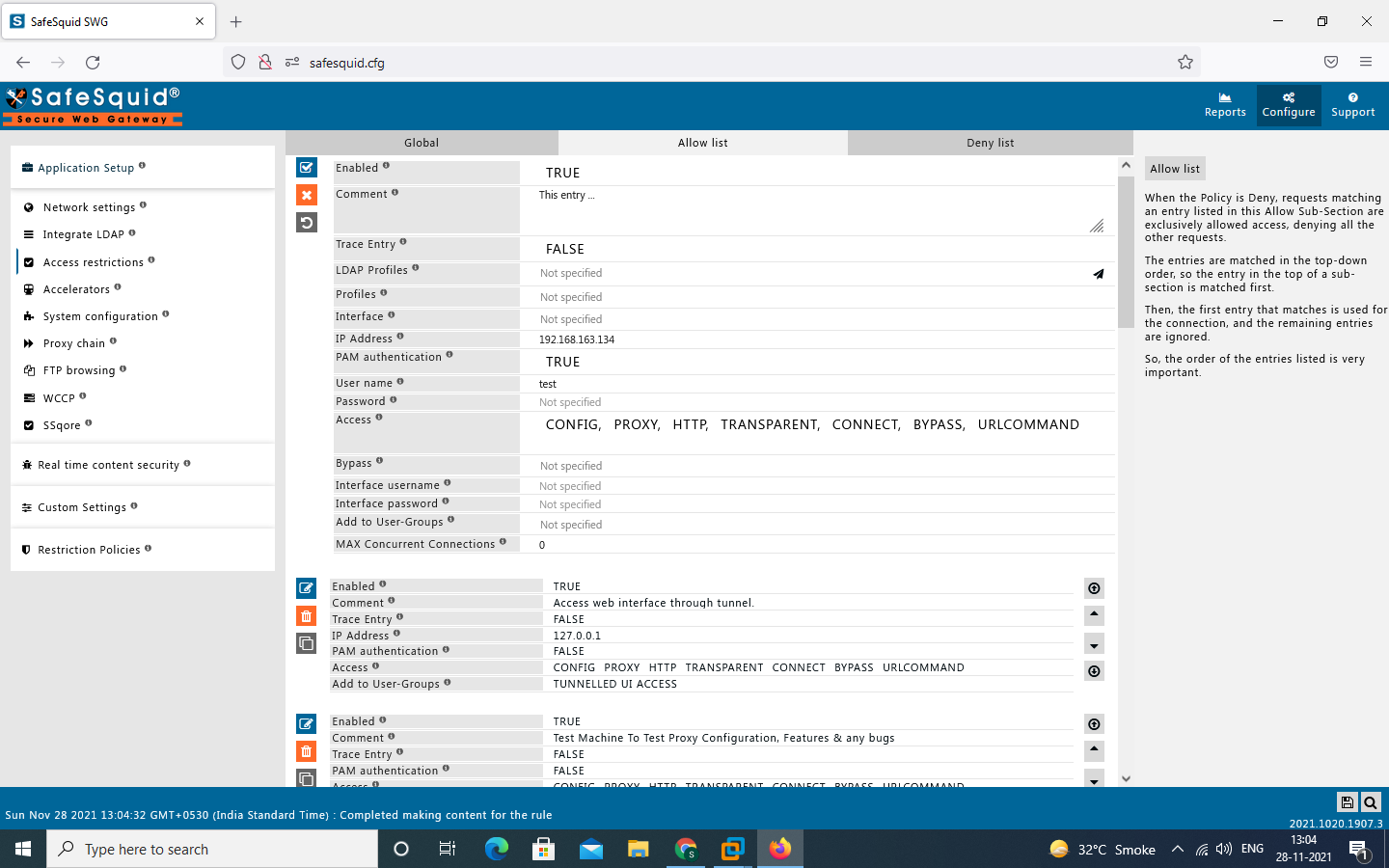

Last Step Created Access Restriction Rule on safesquid.cfg

Configure --> Application setup --> Access Restriction

IP address = 192.168.163.164
Pam Authentication = TRUE
username = test (this user is in SAFESQUID Database user table)

Screenshot (83).png (175.92 KiB) Viewed 3195 times

Please guide me what mistake i have doing.

[SiddharthDubey55]

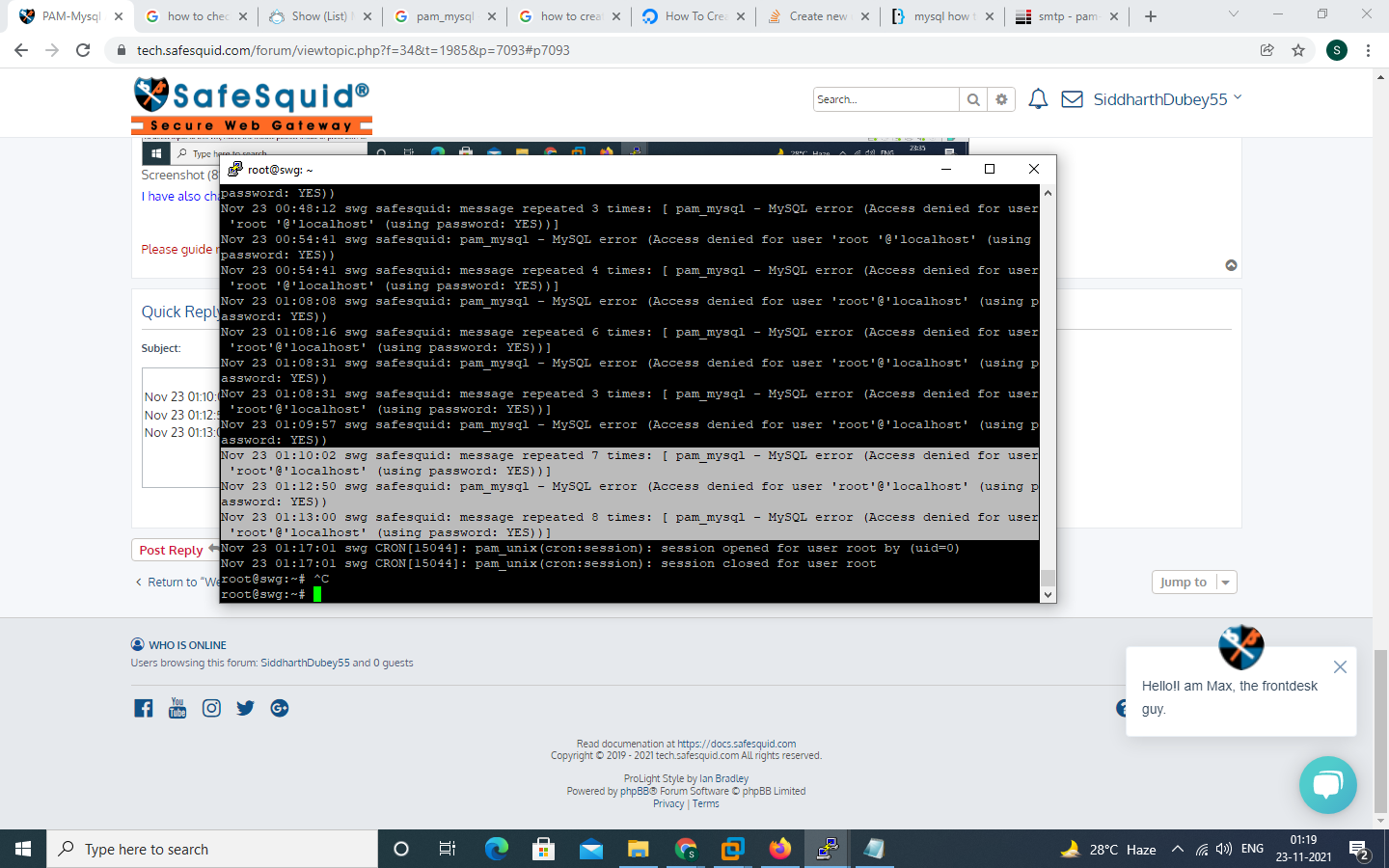

this Error I am getting in auth.log



Nov 23 01:10:02 swg safesquid: message repeated 7 times: [ pam_mysql - MySQL error (Access denied for user 'root'@'localhost' (using password: YES))]
Nov 23 01:12:50 swg safesquid: pam_mysql - MySQL error (Access denied for user 'root'@'localhost' (using password: YES))
Nov 23 01:13:00 swg safesquid: message repeated 8 times: [ pam_mysql - MySQL error (Access denied for user 'root'@'localhost' (using password: YES))]

Screenshot (82).png (238.38 KiB) Viewed 3227 times

[clarity]

Looks like the database on MySQL needs to be given proper permissions.
Did you validate the credemtials for user@localhost?

Recommend use of pamtester for validating PAM related setup.
http://pamtester.sourceforge.net/

[SiddharthDubey55]

Hello Sir ,
I have tried with default user table of mysql

I am able to log in mysql by using those user and password in my local system

I will show share screen shot with you

[SiddharthDubey55]

User table (DB - mysql)

Screenshot (92).png (104.19 KiB) Viewed 3162 times

/etc/pam-mysql.conf

Screenshot (95).png (119.59 KiB) Viewed 3161 times

/etc/pam.d/safesquid

Screenshot (94).png (95.04 KiB) Viewed 3160 times

[SiddharthDubey55]

Below you can see i am able to Login in MYSQLClient by using this USER

Screenshot (96).png (194.18 KiB) Viewed 3159 times

Screenshot (93).png (253.92 KiB) Viewed 3159 times

[clarity]

What do you see in the MySQL logs for the authentication failure error events?
What is the result of pamtester?

[SiddharthDubey55]

Hello Sir,

Problem Solved

set user.password_crypt=0 ( /etc/pam-mysql.conf )

Thanks for the help
